Quick Connect™ Dual Luer Harnesses Quick Connect™ Dual Luer Harnesses Quick Connect™ Dual Luer Harnesses

Quick Connect™ Dual Luer Harnesses

$40.85

Quantity:

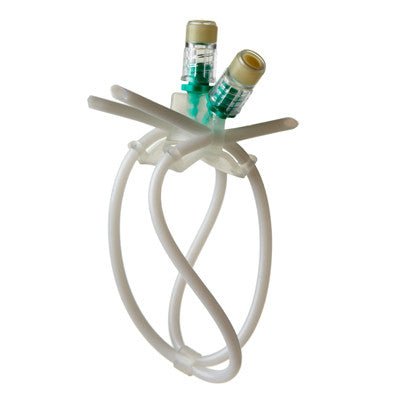

SAI's next step in the Quick Connect series is a dual luer harness. It is designed for researchers that need to infuse their compound and also take blood samples. The vertical luer is for the tethered infusion line and the angled port is for sampling. A catheter fit will depend on wall thickness, material, and elasticity. US Patent No. 7,665,424
  • Both luer ports come with an injection cap but a luer valve can also be used for the blood collection port to eliminate needles
  • Can also be used for bile collection or bile salt infusions
  • Harness with a 21G catheter connector will fit catheters with an ID of 0.030-0.024 in.
  • Harness with a 22G catheter connector will fit catheters with an ID of 0.026-0.020 in.
  • Harness with a 23G catheter connector will fit catheters wth an ID of 0.023-0.018 in.
Part #  Description
QCDH-23 Quick Connect™ Dual Luered Harness
QCDH-22 Quick Connect™ Dual Luered Harness
QCDH-21 Quick Connect™ Dual Luered Harness
QCDH-23-23LIV Quick Connect™ Dual Luered Harness with 23G Luer Port and 23G Luer Injection Valve Port
QCDH-22-22LIV Quick Connect™ Dual Luered Harness with 22G Luer Port and 22G Luer Injection Valve Port
QCDH-21-21LIV Quick Connect™ Dual Luered Harness with 21G Luer Port and 21G Luer Injection Valve Port
